Motic

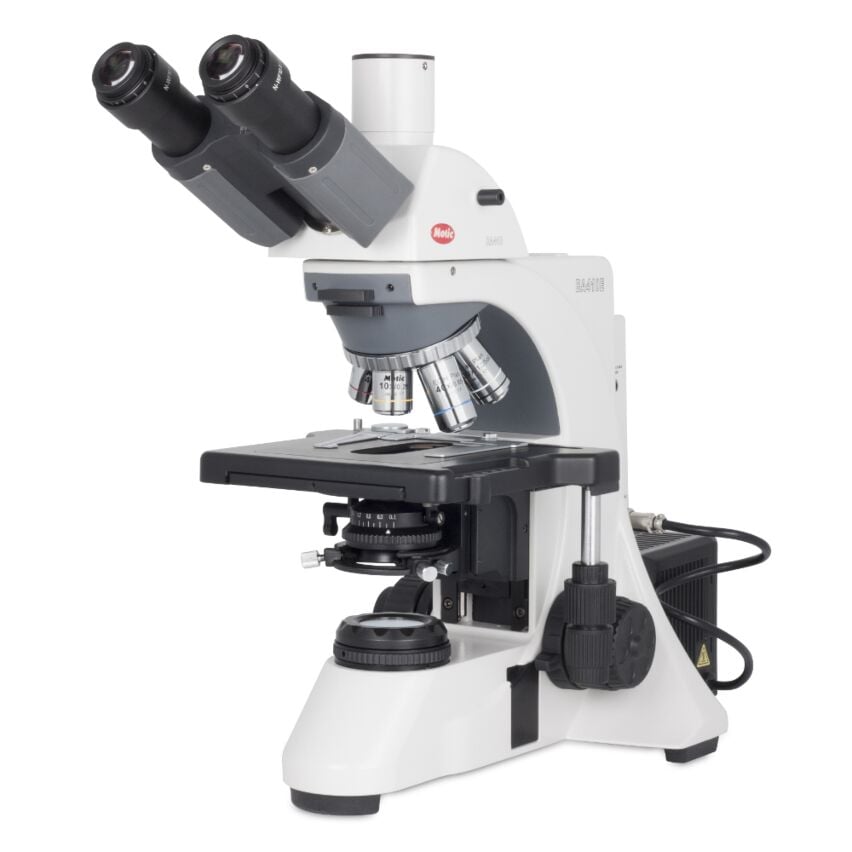

BA410E-TPH Elite Trinocular Phase Contrast Microscope
- EC-H Plan Objective (EC-H 4X)
- EC-H Plan Phase Objectives (Ph10X, Ph40X, Ph100X)
- Color-Corrected Infinity Optics
- Six-position Reversed Nosepiece
- 5 position (BF, DF, PH1, PH2, PH3) turret condenser
- 12V50W Halogen & 12V3W LED Illumination
- Built in low position rackless stage with right hand control
- MPN 1100100403242
Summary
Designed for university, clinical laboratory and research applications, The BA410E Elite is the flagship of Motics upright compound series. The BA410E features a reversed six-position nosepiece and external 50W Halogen Kohler & 3W LED illumination as standard equipment. It also incorporates a fully rotating, 30-degree inclined trinocular siedentopf viewing head with 10X widefield eyepieces offering 22mmm FOV, 48mm to 75mm of interpupillary adjustment and individual diopter adjustment.
Optics
The optical system is designed around Motic's new class of EC-H Color Corrected Infinity System Plan Phase Achromatic objectives in PL4x, Ph10x, Ph40xS and Ph100xS-Oil. These new lenses are multilayer-coated for improved contrast and image enhancement, highlighting even the weakest stained specimens for exceptional visual and digital results. The trinocular tube allows digital documentation with 20/80 light splits for the trinocular exit.
Stage & Focus
A large double-layered, anodized mechanical RH stage features rackless, ball-bearing drive through 80mm x 53mm of XY movement. The coaxial right-handed stage controls offer finger-touch X-Y adjustment and ergonomic placement for 'eyes down' operation. Safety features include a rack-stop and slip clutch to minimizes the risk of damage from over-extension.
The Phase contrast 5 position (BF, DF, PH1, PH2, PH3) turret condenser with rack and pinion height adjustment and centering telescope. High quality illumination is powered by an externally mounted 12V 50W Koehler Halogen and 3W LED (6000K) lamp house with variable intensity and new collector lens assembly. Universal Power Supply 100-240V UL.
Accessories
Owners Manual, 5ml Immersion Oil, Hex Key, 45mm Blue Filter, Dust Cover.Specifications of Component Options
-
BA410E-TPH Elite Premium Trinocular Phase Contrast Microscope Product Details Brand Motic Warranty Limited Lifetime Warranty System System Type Brightfield Optical Design DIN 160mm Number of Heads Single Primary Head Head Head Type Trinocular Head Rotation 360 Degrees Ocular Angle 30° Diopter Adjustment Dual Interpupillary Adjustment Arc (Seidentopf) Interpupillary Adjustment Range 48-75 mm Trinocular Type Switchable Beam-Split Trinocular Tube Focusable? No Parfocal No Ocular Tube Diameter 30 mm Body Nosepiece Orientation Reversed Nosepiece Style Sextuple (6) Focus Controls Coarse & Fine Focus Mechanism Rack & Pinion Focus Control Location Dual Ambidextrous Focus Controls Graduated? Yes Focus Control Safety Stop Slip Clutch Stage Type Mechanical XY Stage Features Ceramic Coated Stage Range of Movement (XY) 80mm x 53mm Stage Range Graduated? Yes Configuration Includes Eyepieces? Yes Included Eyepiece Quantity 2 Included Eyepieces (X) 10X Eyepiece Style SWF Super Widefield (FN 22mm) Available Eyepieces 12.5X Includes Eyecups? No Min Standard Mag 40X Max Standard Mag 1000X Objectives Included Objectives (Qty) 4 Objective Lens Plan Included Objective Types Brightfield Included Objectives Parfocal Adjustable? No Objective 1 Description EC-H PL4X Objective 1 N.A. 0.1 Objective 1 W.D. 15.9mm Objective 2 Description EC-H Ph10X Objective 2 N.A. 0.25 Objective 2 W.D. 17.4mm Objective 3 Description EC-H Ph40X S Objective 3 N.A. 0.65 Objective 3 W.D. 0.5mm Objective 4 Description EC-H Ph100X S-Oil Objective 4 N.A. 1.25 Objective 4 W.D. 0.15mm Condenser Condenser Type Abbe Brightfield Condenser Features Achromatic Condenser N.A. 0.9 mm Filters Included Blue Illumination Illumination Type Halogen Illumination Style Transmitted Collector Type Kohler Collector Features Field Diaphragm Transmitted Light Type Halogen Transmitted Light Specification 12V 50W Transmitted Light Control Variable Power Supply 100 - 240V UL Epi-Fluorescence Epi-Fluorescence System Details Complete Epi-Fluorescence Attachment for BA consists of the following individually listed parts: Epi-Fluorescence attachment with filter cassette Mercury Lamp 100W Lamphouse HBO 100W, collector Lens and Mercury Lamp socket Starter unit HBO 100W Lamp centering tool Power cord Compatibility Imaging Compatibility (with adapters) 23mm Reticles Reticles Available? Yes Reticle Diameter (10X Eyepiece) 22M Accessories Included Extras Immersion Oil Case Included? No -
