Benchmark Scientific
Benchmark Scientific Z307 Universal Centrifuge
- Control: Digital
- Refrigerated: No
- Speed Type: Variable Speed
- Rotor: Fixed Angle
- Min Speed (RPM): 200
- Max Speed (RPM): 14000
- Max RCF: 18624
- Run Time Max (sec): 360000
- Deceleration Time to Full Stop (sec): 4
- Timer: Yes
- CE approved: No
- CSA approved: No

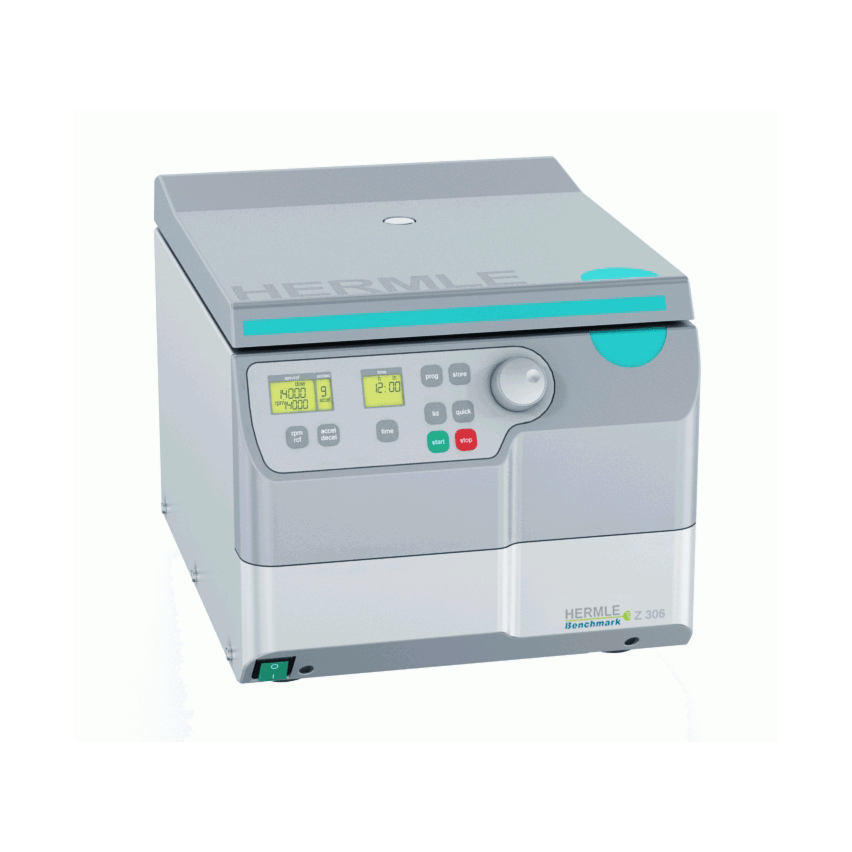

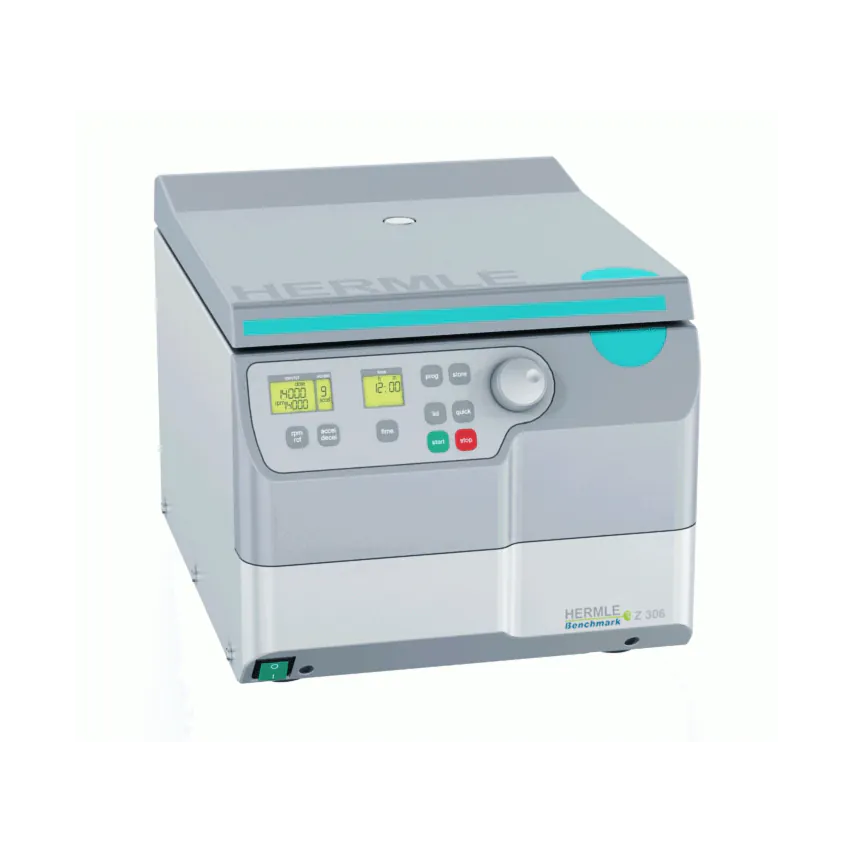

Z307 Universal Centrifuge
Multi-Purpose, one compact centrifuge that accepts:
- Swing out rotors (12 x 15ml or 8 x 50ml)
- High Speed microtube rotors (up to 18,624xg)
- Low-Medium speed fixed angle rotors for 15ml to 50ml
The Z307 is a compact and economical centrifuge with a series of rotor options making it well suited for clinical, industrial, and research laboratories. Despite the impressive capacity of the 4 x 100ml rotor (capable of supporting 8 x 50ml or 12 x 15ml with the use of rotor inserts), the Z306 is surprisingly compact with a footprint of just over 14 x 18 inches. An optional rotor is also available for microplates (2 x 3 microplates), positioning this model as one of the smallest, and least expensive centrifuges capable of high speed microplate centrifugation.
Advanced microprocessor controls allow for instant rotor identification, which automatically converts the rotational speed to the relevant g-force (rcf), preventing the user from setting a speed above the capabilities of the installed rotor. In addition to retrieving saved programs, the easy to use front panel can adjust accel/decel rates, and change the end of run alarm tone.
The Z 307 offers many accessories, including rotors for microtitreplates and high-speed fixed angle rotors for reaction vessels or centrifuge tubes up to 50 ml. Additionally, swing out rotors, which hold a volume of up to 4 x 145 ml can be used for tissue culture tubes and also for all common blood tubes.This wide range of accessories makes the Z 306 laboratory centrifuge indespensable in research laboratories and small clinical laboratories.
Features and functions
- Microprocessor control
- Active imbalance detection and cut-off
- One-hand closing
- Motor driven lid lock
- Automatic rotor identification system with over speed protection
- Audible signal at the end of each run
- Emergency lid lock
- Stainless steel chamber
- Air cooling
- Autoclavable rotors
Display functions
- Diagnostic program
- Program memory for 99 programs
- Quick-key for short runs
- 10 acceleration and 10 deceleration rates, possibility of unbreaked deceleration
- Permanent indication of preset and actual values
- Pre-selection of speed or RCF in steps of 50/10-er
- Pre-selection of running time from 10 sec to 99h 59min or continious
- Simple one handed opertaion
|
Z306 Universal Centrifuge Brochure |
Specifications of Component Options
-
Benchmark Z307 Universal Centrifuge Product Details Brand Hermle Product Length 18.66 Product Width 13.98 Product Height 13.11 -
4 x 200 ml swing out rotor, with 4 buckets
4 x 200 ml swing out rotor, no buckets
4 x 145ml swing out rotor
4 x 100ml swing out rotor with hermetically sealed buckets
4 x 100ml swing out rotor without buckets
2 place swing out microplate rotor
6 x 50ml rotor
12 x 15ml rotor
30 x 15 ml rotor
24 x 1.5ml rotor, hermetically sealed
24x1.5/2.0ml rotor, hermetically sealed metal lid
30 x 1.5ml rotor
12 x 5ml rotor Product Details Brand Benchmark Scientific Benchmark Scientific Benchmark Scientific Benchmark Scientific Benchmark Scientific Benchmark Scientific Benchmark Scientific Benchmark Scientific Benchmark Scientific Benchmark Scientific Benchmark Scientific Benchmark Scientific Benchmark Scientific
