Summary

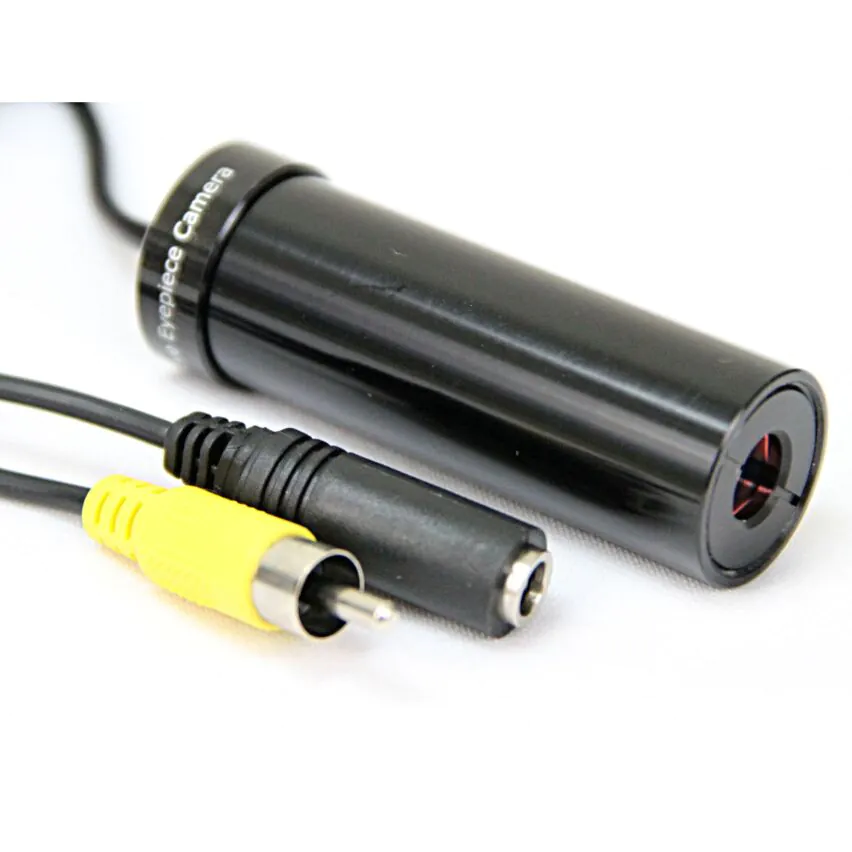

The Dino Lite AM422XN eyepiece digital camera fits 23mm eyepiece ports and with two included adapters, it also can be used with C-Mount or 30.5mm ports. VGA output is direct to monitor or TV with 510x496 pixel resolution. The AV/TV output sends a live CMOS color signal directly to a television or monitor screen for real-time video and imagery analysis, without the complexity of computer software.
The CMOS color sensor adjusts color balance, brightness and contrast in less-than-optimum lighting conditions. It is part of the eyepiece camera series manufactured by Dino-Lite Digital Handheld Microscopes renowned for robust, easy-to-use software and excellent color reproduction. /span>
Camera Adapters
Designed to fit standard 23mm eyepiece ports. Includes 30mm C-Mount and 30.5mm adapters for greater versatility.
AM422Xn Demonstration Video
AM422XN Eyepiece Camera |
|
| Product Details | |
| Brand | Dino-Eye |
| Notes | The Dino Lite AM422XN eyepiece digital camera (AV/TV) is the ideal companion to your traditional microscope. It is designed for use with compound or stereo microscopes in the metallurgy, biology, entomology and industrial inspection fields, or anywhere real-time, live imaging duties are needed. |
| Product Weight | 0.62 |
| Sensor | |
| Sensor Type | CMOS |
| Sensor Size | 1/3 Inch |
| Color/Monochrome | Color |
| Filter | RGB Bayer Pattern |
| Camera | |
| Camera Mount | C-Mount |
| Resolution | NTSC 480 Line, 510x496 pixels |
| Camera Interface | RCA Composite Video |
| White Balance | Automatic |
| Software Included | Dino Capture |
| File Formats | BMP |
| Exposure Control | Automatic |
| Other Details | |
| Included Accessories | Storage Case |
| Supported Operating Systems | Windows 7 |
| Certifications | CE |
| Cable Length | 6 Ft |
| Camera Warranty | 2 Years |
| Compatibility | |
| Imaging Compatibility (with adapters) | 23mm |
| Brand | Dino-Eye |
|---|---|
| Notes | The Dino Lite AM422XN eyepiece digital camera (AV/TV) is the ideal companion to your traditional microscope. It is designed for use with compound or stereo microscopes in the metallurgy, biology, entomology and industrial inspection fields, or anywhere real-time, live imaging duties are needed. |
| Product Weight | 0.62 |
| Recommended For | 0 |
| Sensor Type | CMOS |
| Sensor Size | 1/3 Inch |
| Color/Monochrome | Color |
| Filter | RGB Bayer Pattern |
| Peltier Cooling | No |
| Camera Mount | C-Mount |
| Resolution | NTSC 480 Line, 510x496 pixels |
| Camera Interface | RCA Composite Video |
| White Balance | Automatic |
| Software Included | Dino Capture |
| File Formats | BMP |
| Exposure Control | Automatic |
| Included Accessories | Storage Case |
| Supported Operating Systems | Windows 7 |
| Certifications | CE |
| Cable Length | 6 Ft |
| Camera Warranty | 2 Years |
| Imaging Compatibility (with adapters) | 23mm |
