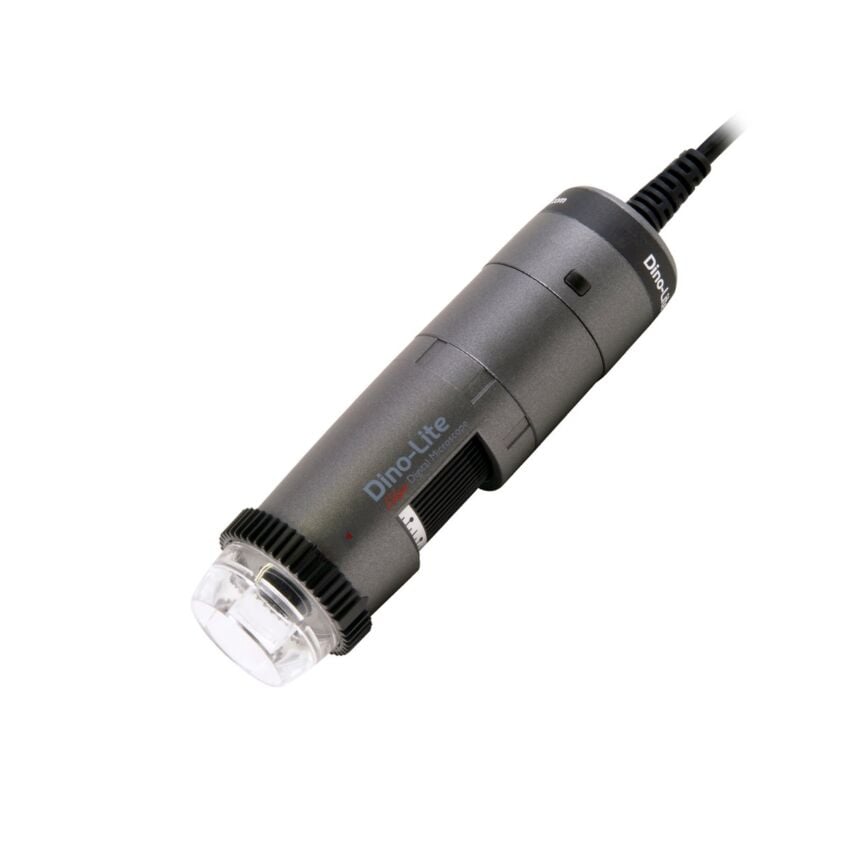

Dino-Lite Edge Series AF4935ZTLE Digital Microscope Camera

The RK-6A table top platform stand combines a versatile horizontal boom arm and a precision-focusing vertical adjustment for sharp, clean images. The RK-6A also features a quick-release pin within the machined vernier focus block that offers vertical re-positioning at the the touch of a button. Push the button in and slide the arm up or down to the desired height, then release the button, focus the microscope thumb wheel and fine-tune for a sharp, clean image.

The extension boom arm can rotate 360 degrees within the focus block, permitting the Dinolite microscope to view vertically, horizontally, or any angle in between. The horizontal arm offers 60mm of lateral movement and the vertical post allows 290mm of height adjustment. An included 130mm extension bar offers yet additional reach for imaging large subjects like PC motherboards, paper samples and other items.

The stand is constructed of durable and lightweight machined aluminum with a stain-resistant finish, making it an ideal choice for lab work, pcb inspections and industrial assembly line quality check stations.

For added versatility, the RK-6A can be easily paired with the new Dino Lite MS15X XY+R Base with Removable Rotating Table which allows you to move a specimen on both the X and Y axis as well as rotate it 360 degrees in a steady, controlled manner.

Accessories: Stand, Extension Arm, HD-P1 holster.

Dino-Lite Demonstration Video

Dino-Lite offers this economic stand option to accommodate its line of handheld digital microscopes. This flexible, versatile desktop stand provides an excellent hands-free solution to shaky images. It's ideal for users who seldom need to change focus or magnification.

The Articulating Desktop Stand, with a convenient adjustable point of view, comes in gloss black, making it a stylish choice for any environment. The MS22B is another versatile tool in the expanding line of Dino-Lite accessories to help you maximize your potential.

If working distance is what you seek with your digital microscope stand, Dino-Lite's Rigid Versatile Stand is the ideal choice. Not only does the MS35B tabletop stand allow for 8 inches of vertical working space from the specimen, but it also provides up to 360 degrees of horizontal axis rotational perspective.

It can be easily paired with the new Dino Lite MS15X XY+R Base with Removable Rotating Table which allows you to move a specimen on both the X and Y axis as well as rotate it 360 degrees in a steady, controlled manner.

The grip holster is fastened to a focus block by a ball-and-socket joint which pivots, providing 80 degrees of lateral viewing angles. The focus block offers rack and pinion action and 1.0" of vertical movement to fine-tune your image for optimum detail.

The stand is constructed of durable stainless steel and lightweight recycled aluminum, making it an ideal choice for lab work, pcb inspections and industrial assembly line quality check stations.

Dino-Lite Demonstration Video

The MSRK-10A table top platform stand combines a versatile horizontal boom arm and a precision-focusing vertical adjustment for sharp, clean images. The RK-10A also features a quick-release mechanism within the machined vernier focus block that offers vertical re-positioning at the the touch of a button. Push the button in and slide the arm up or down to the desired height, then release the button, focus the microscope thumb wheel and fine-tune with the vertical knob for a sharp, clean image. An included safety collar offers a secure reference point for repeated observations at the same magnification level.

The boom arm can rotate 360 degrees within the focus block, permitting the microscope to view vertically, horizontally, or any angle in between. The horizontal arm offers 115mm of lateral movement and the vertical post allows 148mm of height adjustment. An included 130mm extension bar offers yet additional reach for imaging large subjects like PC motherboards, paper samples and other items.

The stand is constructed of durable and lightweight machined aluminum with a stain-resistant finish, making it an ideal choice for lab work, pcb inspections and industrial assembly line quality check stations.

For added versatility, the MSRK-10A can be easily paired with the new Dino Lite MS15X XY+R Base with Removable Rotating Table which allows you to move a specimen on both the X and Y axis as well as rotate it 360 degrees in a steady, controlled manner.

Accessories: Stand, Extension Arm, HD-P1 holster.

Dino-Lite Demonstration Video

Summary

The new RK-02 is a durable and flexible gooseneck arm designed to work with any Dino-Lite microscope. It offers 23 inches of reach, a C-clamp capable of attaching to any workbench or post up to 3 inches thick, and an included MSA2HL holster to securely attach any model of Dino-Lite microscope.

Features

The Dino Lite RK-02 is a bigger, industrial version of our popular MS23B flexible clamp stand. It gives the user a 360-degree range of movement as well as the freedom to move the microscope vertically and position it in awkward, hard-to-reach spaces. The metal flexible arm can be bent into the position of your choosing and holds your Dino Lite steady, freeing up your hands for other tasks.

The holster attachment point also rotates 360 degrees for added flexibility. The flat section C-clamp attaches to any table, workbench or post up to 3 inches thick, offering a quick and secure mounting point in an otherwise inaccessible work environment.

Shipping details: Dimensions - 9.8" x 3.2" x 1.2" 3.3 Lb

Dino-Lite Demonstration Video

The Dino-Lite MSRK-10VX is an optional rigid arm extension which increase MSRK-10A's vertical reach and effective working distance by 150mm (5.9"). TheMSRK-10VX also features a machined rotating mounting pin which allows 360-degree observations from any angle required.

MSRK-10FX is an optional flexible arm extension which increase MSRK-10A's effective reach an offers a wide range of motion with good flexibility and stiffness to hold any desired position. The RK-10FX also features a machined rotating mounting pin which allows 360-degree observations from any angle required.

Summary

The N3C-A Coaxial Light cap creates coaxial illumination for Dino-Lite Edge series handheld digital microscopes. The coaxial light beam is formed by using a beam-splitting mirror to collect and focus the light rays into a single powerful beam. Note: This cap will reduce working distance by 5mm and the higher magnifications may not be attainable.

Summary

The N3C-R is one of the newest tools for Edge series microscopes, generating a soft, shadow-free ring of diffused illumination. The 2.5 inch diameter ring clips on to Edge series polarized and non-polarized models and simulates a ring illuminatior without the added weight and complexity. This makes it ideal for industrial inspection, law enfrocement forensics analysis, pcb repair, gemstone classification and more. Note: The N3C-R is best suited for working distances in the range of about 2 to 15 cm. It may not be suitable for closer working distance operation, and is not compatible with high magnification models such as AM4515T5 or AM4515T8
