Jenoptik ProgRes

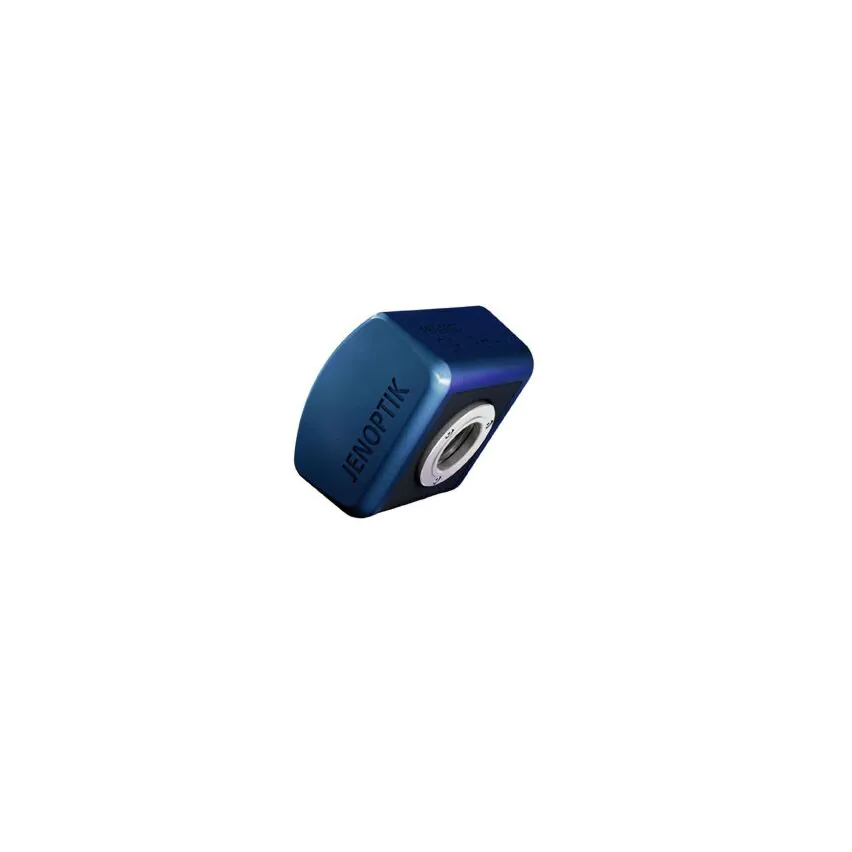

Gryphax Rigel 2.3 MP Low Light CMOS Monochrome Digital Microscope Camera
- 2.3 MP monochrome Sony CMOS 1/1.2 back-lit sensor
- Win, Mac & Linux compatible
- Near perfect color reproduction
- Fast (60 FPS) low-light refresh rates
- High speed USB 3.0 Output
- Standard C-Mount Interface
- Legendary German engineering
Summary
The PROGRES GRYPHAX® RIGEL is the monochrome counterpart to the KAPELLA and is the most sensitive camera in the entire portfolio. It is the perfect low-light camera, capable of dealing with all aspects of darkfield microscopy through its exceptional sensitivity threshold.
Rigel Series
The Rigel series is designed for complete versatility and performance in challenging research and academic environments. They feature a high-quality Sony monochrome back-lit CMOS sensor for perfect color reproduction and USB 3.0 output for fast live imaging of up to 60 frames per second at 2.0 MP resolution. They operate fluidly in all low-light and contrast conditions. Includes c-mount interface camera, Progres Gryphax software, USB 3.0 cable, instruction manual.
Gryphax Software
Available in the full line of Gryphax digital microscope cameras, the Gryphax software delivers optimal image quality, accurate calibration and exceptional versatility. Connect the camera, launch the software and start recording data or capturing images with automatic, fast exposure control, panorama, z-stacking, multi-fluorescence, image comparison (side by side), video recording and live-image optimized results. The Windows, MAC and Linux-compatible software features a comprehensive suite of productivity-enhancing tools to meet the demands of scientific research and documentation.
Gryphax Rigel 2.3 MP Low Light CMOS Monochrome Digital Microscope Camera |
|
| Product Details | |
| Brand | Jenoptik ProgRes |
| Notes | |
| Product Weight | 1.6 |
| Product Length | 89 mm |
| Product Width | 84 mm |
| Product Height | 93 mm |
| Sensor | |
| Sensor Type | CMOS |
| Sensor Size | 1/1.2 Inch |
| Sensor Details | Sony Back Illuminated CMOS |
| Color/Monochrome | Monochrome |
| Filter | RGB Bayer Pattern |
| Pixel Pitch | 5.86 µm |
| Scan Mode | Progressive |
| Sensitivity | 32.000 e- |
| Dynamic Range | 73.3 dB |
| A/D Conversion | 12 bit |
| Shutter | Global Shutter |
| Camera | |
| Camera Mount | C-Mount |
| Camera Output Resolutions | 1920 x 1200 |
| FPS @ Max Res | 60 FPS @ 1920 x 1200 |
| FPS @ Min Res | |
| Camera Interface | USB 3.0 |
| White Balance | Area-of-Interest |
| Black Balance | Dark Frame Correction |
| Software Included | GRYPHAX |
| Driver API Compatibility | TWAIN |
| Power Source | USB |
| File Formats | BMP |
| Exposure Control | Area-of-Interest |
| Exposure Time | 21 µs – 60 s |
| Other Details | |
| Included Accessories | Progres Gryphax software, USB 3.0 cable, instruction manual. |
| Supported Operating Systems | Windows 10 |
| System Requirements | 2GB RAM Recommended |
| Certifications | CE |
| Camera Warranty | 2 Years |
| Compatibility | |
| Imaging Compatibility (with adapters) | C-Mount |
| Brand | Jenoptik ProgRes |
|---|---|
| Product Weight | 1.6 |
| Product Length | 89 mm |
| Product Width | 84 mm |
| Product Height | 93 mm |
| Recommended For | 0 |
| Sensor Type | CMOS |
| Sensor Size | 1/1.2 Inch |
| Sensor Details | Sony Back Illuminated CMOS |
| Color/Monochrome | Monochrome |
| Filter | RGB Bayer Pattern |
| Pixel Pitch | 5.86 µm |
| Scan Mode | Progressive |
| Sensitivity | 32.000 e- |
| Dynamic Range | 73.3 dB |
| A/D Conversion | 12 bit |
| Peltier Cooling | No |
| Shutter | Global Shutter |
| Camera Mount | C-Mount |
| Camera Output Resolutions | 1920 x 1200 |
| FPS @ Max Res | 60 FPS @ 1920 x 1200 |
| Camera Interface | USB 3.0 |
| White Balance | Area-of-Interest |
| Black Balance | Dark Frame Correction |
| Software Included | GRYPHAX |
| Driver API Compatibility | TWAIN |
| Power Source | USB |
| File Formats | BMP |
| Exposure Control | Area-of-Interest |
| Exposure Time | 21 µs – 60 s |
| Included Accessories | Progres Gryphax software, USB 3.0 cable, instruction manual. |
| Supported Operating Systems | Windows 10 |
| System Requirements | 2GB RAM Recommended |
| Certifications | CE |
| Camera Warranty | 2 Years |
| Imaging Compatibility (with adapters) | C-Mount |
Gryphax Rigel 2.3 MP Low Light CMOS Monochrome Digital Microscope Camera
Call for Price: (877) 409-3556
