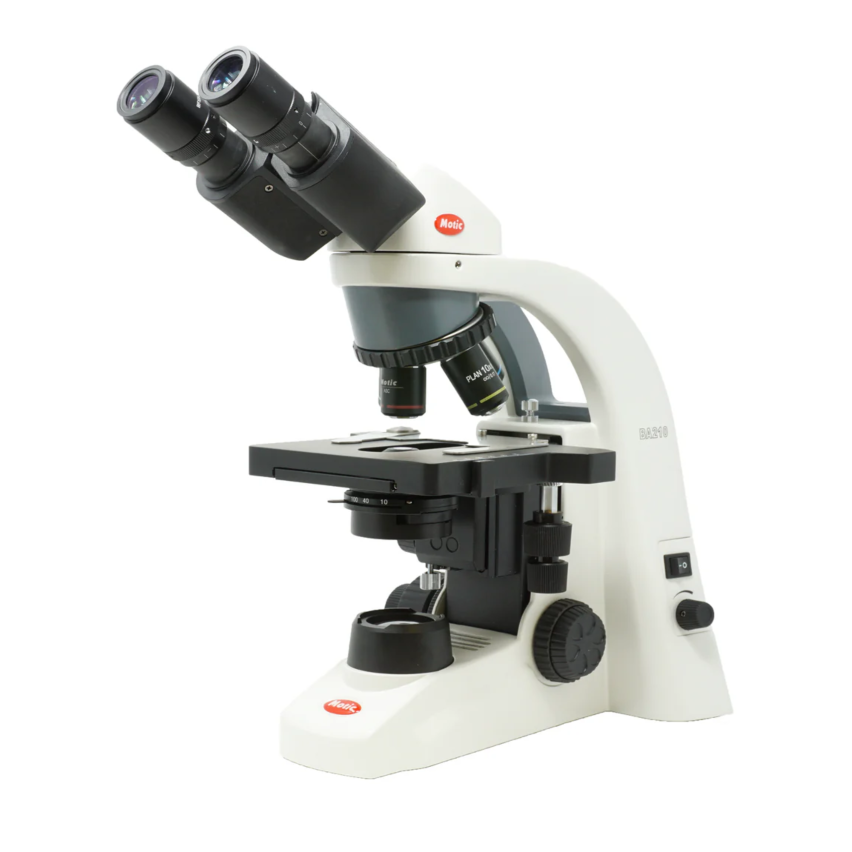

Motic BA210S Biological Compound Microscope
In stock
SKU:
TMS-BA210S
The BA210S biological compound microscope is designed for advanced biology students, teachers, doctors, and lab technicians. Every aspect of these microscopes contributes to making your daily work easier. The ergonomic shape of the stand and the comfortability of the different heads enables fatigue-free viewing for many hours.
| Model | BA210S Binocular | BA210S Trinocular |
| Optical System | Infinity Optical System | Infinity Optical System |
| Observation tube | Binocular Head Siedentopf type | Trinocular Head Siedentopf type, Light split 80/20, 100/0 |
| Inclination | 30° inclined, 360º rotating | 30° inclined, 360º rotating |
| Interpupillary distance | 55-75mm | 55-75mm |
| Diopter adjustment | On both tubes, +/- 5 diopter | On both tubes, +/- 5 diopter |
| Eyepiece | WF10X/20mm | WF10X/20mm |
| Nosepiece | Reverse quadruple revolving nosepiece with click stops | Reverse quadruple revolving nosepiece with click stops |
| Objective classification | ASC Infinity Plan Achromat | ASC Infinity Plan Achromat |
| Objectives | 4X/0.10 (DT 17mm), 10X/0.25 (DT 6.4mm), 40X/0.65/S (DT 0.45mm), 100X/1.25/S (DT 0.14mm) | 4X/0.10 (DT 17mm), 10X/0.25 (DT 6.4mm), 40X/0.65/S (DT 0.45mm), 100X/1.25/S (DT 0.14mm) |
| Objective mounting thread | W 4/5" x 1/36" (RMS standard) | W 4/5" x 1/36" (RMS standard) |
| Mechanical stage | Built-in low position coaxial mechanical stage with sample holder | Built-in low position coaxial mechanical stage with sample holder |
| Stage size Mechanical Stage X&Y | 140mm x 135mm | 140mm x 135mm |
| Range | 76 x 40mm | 76 x 40mm |
| Upper limit stop | Pre-set and adjustable | Pre-set and adjustable |
| Condenser | Rack and pinion Abbe 1.25 N.A. with iris diaphragm | Rack and pinion Abbe 1.25 N.A. with iris diaphragm |
| Focus mechanism | Coaxial coarse and fine focusing system with tension adjustment | Coaxial coarse and fine focusing system with tension adjustment |
| Fine focus precision | 2μm minimum increment | 2μm minimum increment |
| Z-Axis movement | 20mm | 20mm |
| Filter | Built-in frosted glass, no blue filter needed | Built-in frosted glass, no blue filter needed |
| Illumination | LED 3W with intensity control | LED 3W with intensity control |
| Transformer | Internal | Internal |
| Power supply | Universal 100 - 240V 50 - 60Hz | Universal 100 - 240V 50 - 60Hz |
| Accessories included | Dust cover and immersion oil (5ml) | Dust cover and immersion oil (5ml) |
| Length x Width x Height | 360x190x395mm | 360x190x395mm |
| Weight | 7,2Kg | 7,2Kg |
| Projected Image: | Erect |
|---|---|
| Screen Size: | 14" / 353mm |
| Screen Material: | Fine Ground Glass |
| Reference Line: | Cross Hair Line |
| Angle Display: | Resolution 1 minute or 0.01 degree ( switchable), range +/- 370 degree, functions: absolute/incremental mode switching, zero set |
| Magnification Accuracy Contour Illumination: | +/- 0.1 % or less |
| Magnification Accuracy Surface Illumination: | +/- 0.15% or less |
| Projection Lens: | Standard Accessory 10x ( 172-184), optional accessories: 5x, 20x, 50x, and 100x |
| Contour Illumination Light Source: | Halogen Bulb ( 24V, 150W ) |
| Contour Illumination Optical System: | Telecentric System |
| Contour Illumination Functions: | 2-step brightness switch, heat-absorbing filter, cooling fan |
| Surface Illumation Light Source: | Halogen Bulb ( 24V, 150W ) |
| Surface Illumination Optical System: | Adjustable condenser lens, heat-absorbing filter, cooling fan |
| Required Accessories: | - |
| Power Supply: | 120V AC, 50/60Hz |
Specifications of Component Options
Select a component below to view related specifications.
-
Motic BA210S Binocular Biological Compound Microscope, 1100100403831
Motic BA210S Trinocular Biological Compound Microscope, 1100100403841 Product Details Brand Motic Motic
