Motic

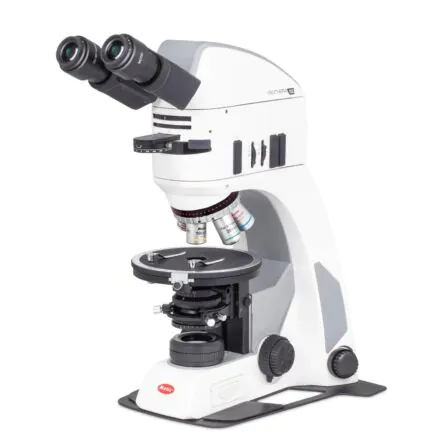

Motic Panthera Cloud Compound Microscope 1100403300201
In stock
SKU:
P-Cloud
Streamline your workflow with Panthera Cloud! With the Smart CAM digital head and the ImagingOnDevice System, this SMART scope enables you to work directly from your microscope to an HDMI screen or tablet. The LAN port offers users the option to work through DigiClass or remote sharing.
You pay:
$4,517.00
Free Shipping
30 Day Money Back Guarantee
Live Chat
Motic Panthera Cloud Compound Microscope 1100403300201
$4,517.00
| Model | Panthera Cloud |
| Observation tube | Binocular head, Siedentopf type 25°, 360° swiveling |
| Optical system | Colour Corrected Infinity Optical System (CCIS®) |
| Sensor Type | CMOS |
| Sensor Size | 1/2.5" |
| Capture Resolution Info | 8MP |
| Condenser | Focusable and centerable Abbe condenser N.A. 0.90/1.25 with slot for contrast sliders |
| Darkfield | Optional slider/turret |
| Data transfer | Wi-Fi, HDMI, Ethernet |
| Diaphragm | Iris diaphragm |
| Diopter adjustment | On both eyepieces, +/- 4 diopter |
| Eyepieces | Widefield UC-WF10X/22mm with diopter adjustment |
| Filter holder | On top of the illuminator with fixing cap |
| Fine focus precision | 2µm |
| Focus mechanism | Coaxial coarse and fine focusing system with tension adjustment |
| Focusing stroke | 25mm |
| Illumination features | Motic LightTracer: Light memory, sleep mode (auto on-off), nosepiece LED light intensity and mode indicator |
| Illumination interchangeability | Halogen/LED and LED color temperature interchangeability |
| Inclination | 25° inclined, 360° swivelling |
| Interpupillary distance | 48-75mm |
| Live display mode through Ethernet | 1280x720, 1920x1080 pixels (Full HD) |
| Live display mode through HDMI | 1920x1080 (Full HD) |
| Live display mode through Wi-Fi | 1920x1080 (Full HD) |
| Nosepiece | Reversed quintuple, coded |
| Objective classification | CCIS® UC Plan Achromatic (Pb free), DIN |
| Objective mounting thread | W 4/5"x1/36" (RMS standard) |
| Objectives | 4X/0.10 (WD 30.5mm), 10X/0.25 (WD 17.4mm), 40X/0.65/S (WD 0.6mm), 100X/1.25/S-Oil (WD 0.16mm) |
| Other features | USB 2.0 for external Devices (x2) |
| Phase contrast | Optional slider/turret |
| Polarization | Optional add-on |
| Stage | Compact mechanical stage with built-in low position rackless coaxial stage control and sample holder |
| Stage size | 185x145mm |
| Stand type | Upright |
| Standard contrast technique | Brightfield |
| Transmitted illumination | Koehler LED 3W & Quartz halogen 6V/30W with intensity control |
| Travel range X&Y | 75x50mm |
| Upper limit stop | Upper limit stop preset but adjustable |
| Software | ImagingOnDevice System (Panthera App embeded) |
| Transformer | Internal |
| Power supply | 110-240V (CE) |
| Accessories included | Dust cover, power cord, Allen key, immersion oil (5ml), blue filter, halogen bulb, LED module, HDMI Cable, Wi-Fi USB dongle, calibration slide |
| Dimensions LxWxH | 282x210x394mm |
| Weight Net | 8.8kg |
