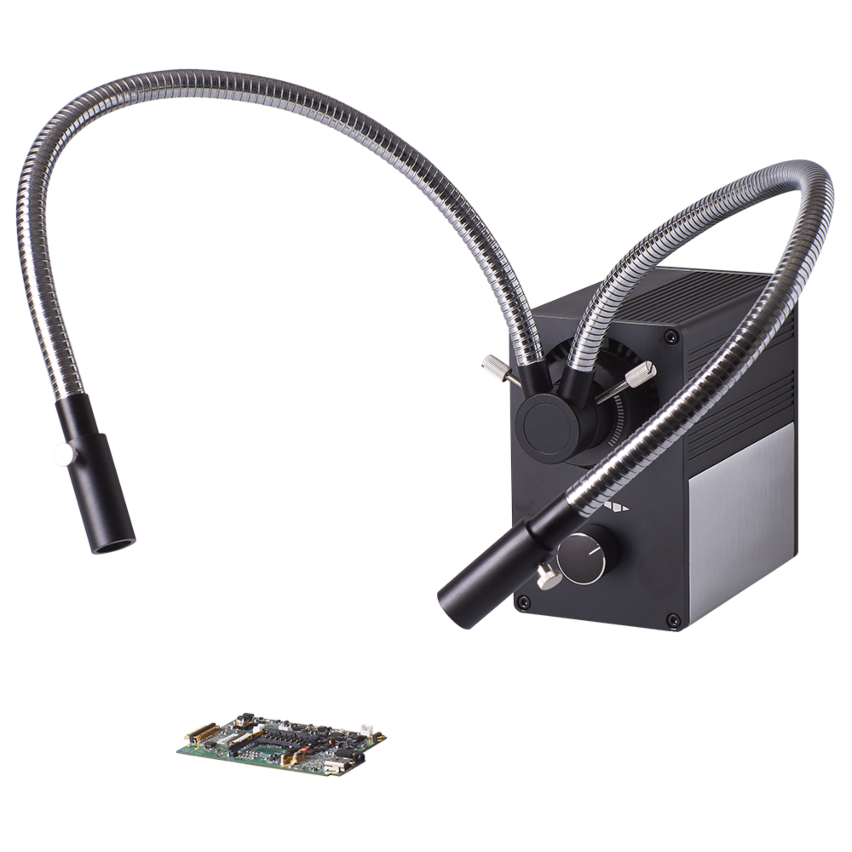

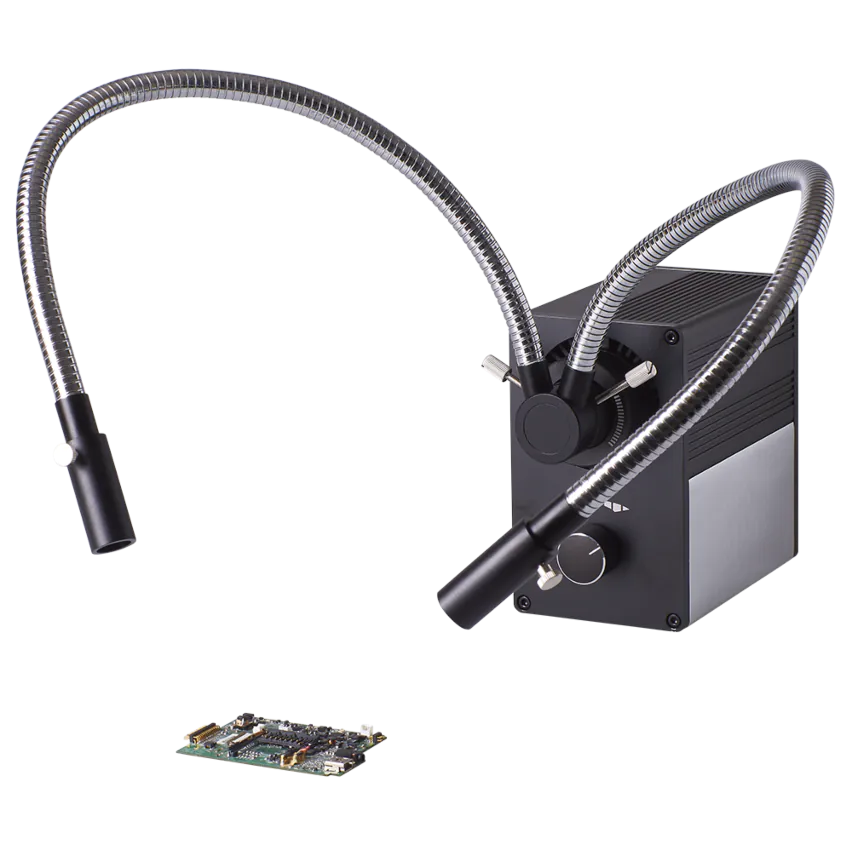

24W LED Fiber Optic Dual Pipe Illuminator

Brand new for 2015, our Omano 24W LED fiber-optic dual pipe system is ideal for applications requiring cool, lab-quality, high intensity light, including veterinary surgery, electronic part inspection, forensics and engraving among others.

The The ESD-Safe and UV-free LED light source accepts input voltage from 96V-265V and allows a continuous range of subdued or concentrated lighting, controlled by a rotary dimmer dial on the front panel. The 5/8" light guide receptacle allows secure fitment of self-supporting, focusing 19-inch dual pipe fiber guides. They offer a variable-focusing cone of light which can be positioned exactly where needed for optimum lighting efficiency. Illumination intensity is variable from zero to full brightness and optional filters can be mounted in the receptacle for greater flexibility. A low-noise-signature forced-air cooling fan helps to ensure a trouble-free, 10,000 hour service life for the 24W LED bulb. The lamp color temperature is 5600K at 1600 lumen output, providing cool, shadow-free illumination for PCB inspection, materials failure analysis, manufacturing quality assurance and many others.

• Powerful 24V LED
• Power Supply: 96V/265V
• Variable Controlled Lighting: 50% to 100%
• Lamp Color Temperature: 5600K
• Fiber Optic dual pipe guides
• Auto-switching (96V-265V) power supply
• Life: 10,000 Hrs
• Weight: 10.4 LB
• Lamphouse Dimensions: 7.5" x 5.5" x 3.5"
