Omano

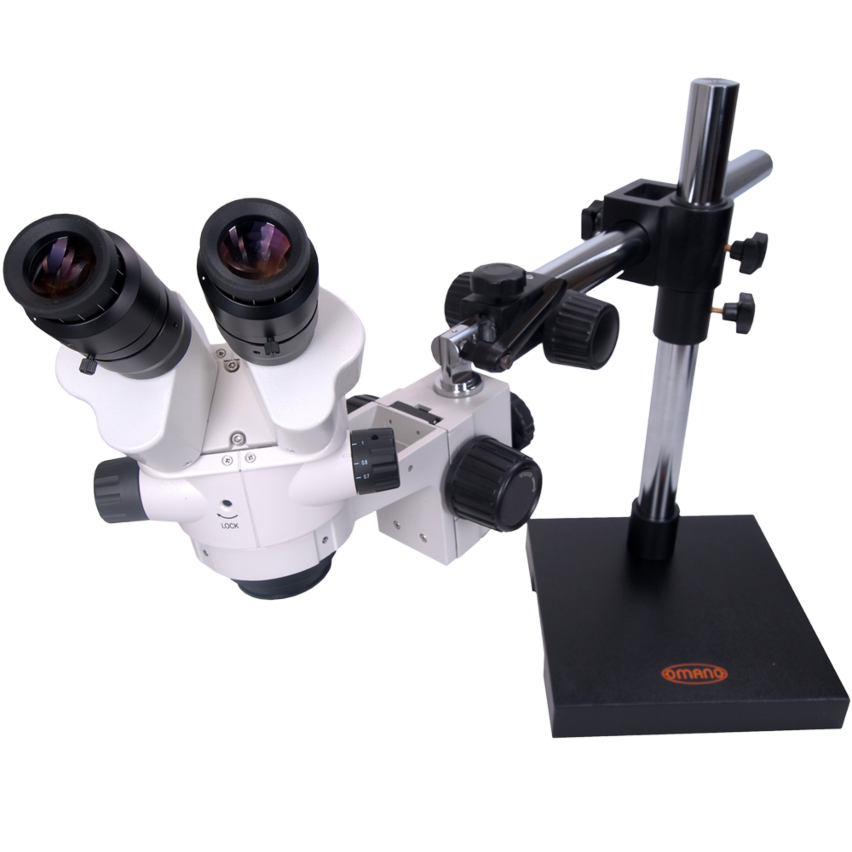

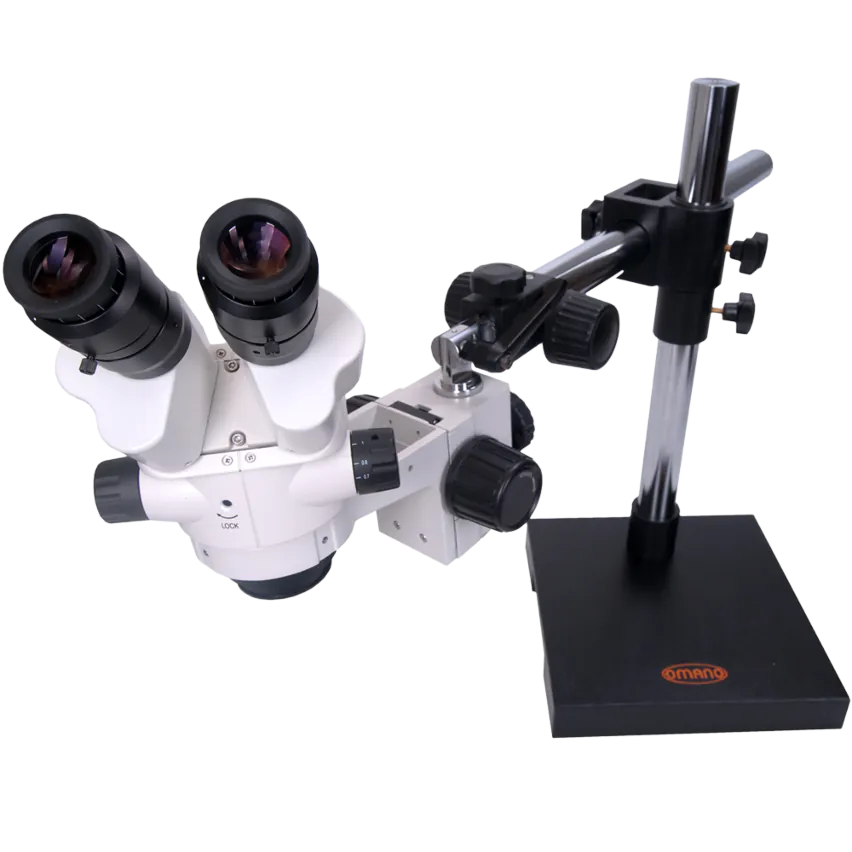

OM2300S-V10 7X - 45X Zoom Stereo Boom Microscope
In stock
SKU:
OM2300S-V10
Authorized Dealer
- Upgraded 7x-45x stereo microscope head
- Trinocular - Simultaneous camera/eyepiece use
- Single arm boom stand with 4" easy adjustment
- WF10x eyepieces
- Binocular or trinocular
- V10 single arm boom stand
- Hanging bar for flexible viewing angles
- Included ring light
- Lifetime Limited Warranty
Summary
The V10 is better than standard single arm boom stands due to a unique 4" extension bar that precludes the need for cumbersome adjustments at the pole. Also includes the most popular Omano OM2300S zoom stereo microscope head.
The OM2300S-V10 combines our most popular industrial zoom inspection microscope with the best single arm boom stand. The upgraded 2300S head provides crisp 7x-45x zoom optics while the V10 boom stand offers greater ease of adjustment over the other Omano single arm stand, the JW11. The V10 has an useful extension bar that permits 4" of horizontal movement without having to adjust the entire boom arm at the junction of the pole. In other words, it is far easier to make adjustments with the V10. Lifetime Limited Warranty.
Optics
The OM2300S zoom stereo microscope head has become our de facto, 'Go To' head for our industrial inspection customers. The 2300S provides a solid design with crisp, clean optics beyond our expectations at this price level. WF10X eyepieces and eyeguards are included and the microscope is available in either binocular or trinocular format. Trinocular version includes a 23.2mm smooth photo tube.
The 7X-45X zoom range (6.4:1) is parfocal with dual diopters integrated into the oculars. Interpupillay adjustment range is 55mm-75mm. Standard working distance is 4.5" which increases to 6.5" with the addition of 0.5x auxiliary barlow lens. Three alternative barlows are available: 0.75x, 1.5x and 2.0x. NOTE: When the beam-splitter lever is engaged in the OM2300S-Trinocular, 80% of the light from the left optical path is directed to the camera port. The image can still be viewed through both eyepieces while the camera is in use.
Focus & Illumination
Rack and pinion focus includes dual right and left hand controls for convenience. An 8-watt fluorescent ring light is included in the price and can be upgraded to stronger LED or other light when adding the microscope to your shopping cart.
Stand
The V10 is an upgrade over the JW11 stand. It features a useful 4", adjustable extension bar at the tip of the boom arm. When using this extension with eyes down, the user can easily adjust the horizontal extension of the boom. In other words, there is no need to release the entire bar in order to make small adjustments. The V10 boom stand is also, heavy-duty weighing 48lbs.
The pole is 20" tall with 14.5" usable height. The horizontal arm extends 26" including the microscope head. A 76mm focus block is included. As with most Omano boom stands, a hanging bar is included that enables angled viewing positions. The hanging bar bracket is spring-loaded so that the lever can be moved out of the way without having to release the pre-set position of the microscope head.
Accessories
Light ring, focus block, dust cover, eyeguards, manual
| MAGNIFICATION CHART (values approximate) | |||||||
| BARLOW | EYEPIECE (X) | WD (mm) | |||||
| 10 | 15 | 20 | |||||
| 0.5 | 3.5X | 22.5X | 5.2X | 33.7X | 7X | 45X | 200 |
| 0.75 | 5.2X | 33.7X | 7.9X | 50.6X | 10.5X | 67.5X | 133 |
| 1 | 7X | 45X | 10.5X | 67.5X | 14X | 90X | 100 |
| 1.5 | 10.5X | 67.5X | 15.7X | 101.2X | 21X | 135X | 66 |
| 2 | 14X | 90X | 21X | 135X | 28X | 180X | 50 |
| MIN | MAX | MIN | MAX | MIN | MAX | ||
| FIELD OF VIEW CHART (in mm – values approximate) | ||||||
| BARLOW | EYEPIECE (X) | |||||
| 10 | 15 | 20 | ||||
| 0.5 | 64 | 10 | 42 | 6.7 | 32 | 5 |
| 0.75 | 42 | 6.7 | 28 | 4 | 21 | 3 |
| 1 | 32 | 5 | 21 | 3.3 | 16 | 2.5 |
| 1.5 | 21 | 3.3 | 14 | 2 | 10 | 2 |
| 2 | 16 | 2.5 | 10 | 1.6 | 8 | 1.2 |
| MIN | MAX | MIN | MAX | MIN | MAX | |
Omano Stereo Boom Stand Comparison
Specifications of Component Options
Select a component below to view related specifications.
-
OM2300S-B Binocular Head
OM2300S-T Trinocular Head (Recommended for Cameras) Product Details Brand Omano Omano Head Head Type Binocular Trinocular Optical Design Greenough Converged Greenough Converged Magnification Type Zoom Zoom Ocular Angle 45° 45° Ocular Tube Diameter 30.5 mm 30.5 mm Barlow Mount Diameter 47 mm 47 mm Diopter Adjustment Dual Dual Interpupillary Adjustment Arc (Seidentopf) Arc (Seidentopf) Interpupillary Adjustment Range 55-75 mm 55-75 mm Trinocular Tube Focusable? No No Head Rotation 360 Degrees 360 Degrees Trinocular Type - Beam Split Continuous Trinocular Standard - 23mm DIN Optics Minimum Objective (X) 0.7 0.7 Maximum Objective (X) 4.5 4.5 Zoom Ratio 6.4:1 6.4:1 Zoom Control Type Smooth Continuous Smooth Continuous Zoom Indicator Graduations Yes Yes Parfocal Yes Yes Configuration Includes Eyepieces? Yes Yes Included Eyepieces (X) 10X 10X Includes Barlow? No No Min Standard Mag 7X 7X Max Standard Mag 45X 45X Includes Eyecups? No No Eyecups Style Soft Rubber Soft Rubber Body Body Material Composite Composite Compatibility Head Ring Mount Diameter 76 mm 76 mm Imaging Compatibility (with adapters) - 23mm Working Distance Max Working Distance (standard) 100 mm 100 mm WD with 0.5x Barlow 100 mm 100 mm WD with 2.0x Barlow 30 30 Reticles Reticles Available? No No -
V10 Boom Stand Product Details Brand Omano Stand Stand Class Boom Stand Type Single Arm Boom Base Width 254 mm Base Depth 254 mm Post Height 464 mm Post Diameter 38 mm View Center to Post Distance 527 mm Physical Construction Metal Tube Coating Type (Stand) Durable Powdercoat If HB Required Requires Separate Hanging Bar? No Hanging Bar Style Articulable -
OMFB23S Focus Block, 76mm Ring Product Details Brand Omano Focus Block Focus Controls Coarse Focus Mechanism Rack & Pinion Compatibility Focus Block Mount Diameter 32 mm Head Ring Mount Diameter 76 mm Mounted Illumination Compatibility Accepts Oblique Illuminator -
OMHB32 Hanging Bar Product Details Brand Omano Hanging Bar Hanging Bar Style Articulable Compatibility Focus Block Mount Diameter 32 mm -
8 Watt Fluorescent Ring Light, GX4 Type
80 LED Ring Light, Variable Intensity
64 LED Ring Light, Variable Intensity by Section
Microscope Ring Light - 144 LED Ring Light, Variable Intensity by Section
3W LED Dual Gooseneck Spot Light
OMLED-DP8W LED Dual Gooseneck Light
OMLED-DP6W LED Dual Gooseneck Pole Mount Light Product Details Brand Omano Omano Omano Omano Omano Omano Omano Warranty - 1 year - - 1 year 1 year 1 year Product Weight - 1lb - - 3.1 lbs 3.1 lbs 4.0 lbs Product Length - - - - 16 cm 16 cm 31.0 cm Product Width - - - - 10 cm 10 cm 29.0 cm Product Height - - - - 8 cm 8 cm 17.5 cm Power Supply - - - - 90V-265V 90V-265V - Light Specs Illumination Type Fluorescent LED LED LED LED LED LED Ring Light Type - LED LED LED LED - LED Ring Light Specification - 80 LED 90-265V Auto switching 90-265V Auto switching - - 3W x 2 Ring Light Power - 8W - - - - 6W Ring Light Control - Variable Variable Variable - - Variable -
0.5X Barlow Lens for Omano OM2300S, WD=165mm
0.75X Barlow Lens for Omano OM2300S, WD=105mm
1.0X Protective Barlow Lens for Omano OM2300S, WD=100mm
1.5X Barlow Lens for Omano OM2300S, WD=45mm
2.0X Barlow Lens for Omano OM2300S, WD=33mm Product Details Brand Omano Omano Omano Omano Omano Warranty Omano Limited Lifetime Warranty Omano Limited Lifetime Warranty Omano Limited Lifetime Warranty Omano Limited Lifetime Warranty Omano Limited Lifetime Warranty Notes Does not fit OM2300, OM2300-T, OM3300 Does not fit OM2300, OM2300-T, OM3300 Does not fit OM2300, OM2300-T, OM3300 Does not fit OM2300, OM2300-T, OM3300 Does not fit OM2300, OM2300-T, OM3300 Compatibility Compatible With OM2300S OM2300S OM2300S OM2300S OM2300S Optical Accessory Barlow Lens Power 0.5X 0.75X 1.5X 1.5X 2.0X -
Reticle, 25mm Linear
Reticle, 25mm Grid
Reticle, 25mm Cross Linear Product Details Brand Omano Omano Omano Notes For OM99, OMXTL, OM2300S For OM99, OMXTL, OM2300S For OM99, OMXTL, OM2300S Backorder ETA - 2020-06-05 00:00:00 - -
15X Eyepieces For Omano OM2300S (Pair)
20X Eyepieces For Omano OM2300S (Pair) Product Details Brand Omano Omano Warranty Omano Limited Lifetime Warranty Omano Limited Lifetime Warranty Notes Priced per Pair Priced per Pair Product Weight 4 - Backorder ETA 2024-05-24 00:00:00 - Compatibility Compatible With OM2300S, OM2300ST OM2300S, OM2300ST Optical Accessory Eyepiece Magnification 15x 20x -
Eyecups, Omano Series C (Pair) 32mm Product Details Brand Omano Backorder ETA 2024-12-23 00:00:00 -
C-Mount Adapter 0.35X for Omano OM2300ST New (Dovetail Mount)
C-Mount Adapter 0.5X for Omano OM2300ST New (Dovetail Mount) Product Details Brand Omano Omano Warranty Omano Limited Lifetime Warranty Omano Limited Lifetime Warranty Notes Does not fit Binocular Does not fit Binocular -
Xposure2MP 2.0MP Color Digital Microscope Camera
Xposure5MP 5.0MP Color Digital Microscope Camera
XposureHDMI 2.0MP HDMI or USB Output Color Digital Microscope Camera
Summit SK2-1.3X 1.3MP PC / MAC Compatible Digital Microscope Camera
Summit SK2-10X 10.0MP PC / MAC Compatible Digital Microscope Camera
OCS-HDMI-1 2.0 MP PC-Only 30 FPS Digital Microscope Camera (Adapter Required)
OCS-HDMI-1080PU 2.0 MP PC / MAC 60 FPS Digital Microscope Camera (Adapter Required) Product Details Brand Omano Omano Omano OptixCam OptixCam KoPa OptixCam Warranty - - - 1 Year 1 Year 1 Year 1 Year Product Weight - - - 2 2 2 2 Sensor Sensor Type CMOS CMOS CMOS CMOS CMOS CMOS CMOS Filter RGB Bayer Pattern RGB Bayer Pattern RGB Bayer Pattern RGB Bayer Pattern RGB Bayer Pattern RGB Bayer Pattern RGB Bayer Pattern Peltier Cooling No No No No No No No Sensor Size - - - 1/3 Inch 1/3 Inch 1/3 Inch 1/2.5 Inch Sensor Details - - - Aptina MT9M111 CMOS APTINA MT9J003 CMOS SONY IMX291 SONY IMX236 Color/Monochrome - - - Color Color Color Color Pixel Pitch - - - 3.6 µm x 3.6 µm 1.7 µm x 1.7 µm 2.9um x 2.9um 2.8um x 2.8um Sensor Color Depth - - - 8bpp / 24bit RGB 8bpp / 24bit RGB - - Scan Mode - - - Progressive Progressive Progressive Progressive Signal to Noise Ratio - - - 44 db 34 db 30 dB - Sensitivity - - - 1.0V/Lux-sec (550nm) 1.0V/Lux-sec (550nm) 1.4v/lux-sec(550nm) - Dynamic Range - - - 71 db 65.2db 128 dB - A/D Conversion - - - 10-bit Parallel, 8-bit RGB to PC 12-bit Parallel, 8-bit R.G.B to PC 12-bit Parallel, 8-bit R.G.B - Shutter - - - Electronic Electronic Electronic Electronic Cooling System - - - - Natural - - Camera Camera Mount - - - C-Mount C-Mount C-Mount C-Mount Resolution - - - 1.3 Megapixel, 1280x1024 pixels 10 Megapixel, 3584 X 2748 pixels 2.0 megapixels 2.0 megapixels Camera Output Resolutions - - - 1280 X 1024; 640 X 512; 320 X 256 3584 X 2748; 1792 x 1374; 896 X 684 1920X1080i60，1920X1080P30,1280x720P60,640x480P60 - FPS @ Max Res - - - 15@1280x1024; 26@640x512; 48@320x256 1.9fps @3584 x 2748 30 Fps 60 @ 1920 x 1080 FPS @ Min Res - - - 50fps @ 320 x 256 27fps @896 x 684 60 FPS - Camera Interface - - - USB 2.0 USB 2.0 SD Card USB 2.0 White Balance - - - Automatic Automatic Automatic Automatic Software Included - - - OptixCam K2View OptixCam K2View - - Driver API Compatibility - - - DirectX DirectX DirectX DirectX Power Source - - - USB USB External Power Supply External Power Supply File Formats - - - BMP BMP JPEG BMP Exposure Control - - - Automatic Automatic Automatic Automatic Exposure Time - - - 2000ms-0.14Ms 2000ms-0.21s 0.21~33ms, Auto & Manual 0.1ms - 999s Operating Temperatures - - - 10°C ~ 50°C 10°C ~ 50°C 0℃~ 40℃ 20-60 Deg. C Operating Humidity - - - 30% ~ 80% RH 30% ~ 80% RH 30~80%RH 30-80% RH Storage Temperature - - - -20°C ~ 60°C -20°C ~ 60°C -20℃~ 60℃ - Other Details Included Accessories - - - 0.5X 23mm DIN Adapter, Software CD 0.5X 23mm DIN Adapter, Software CD - - Supported Operating Systems - - - Windows 10 Windows 10 N/A Windows 10 System Requirements - - - 2GB RAM Recommended 2GB RAM Recommended 2GB RAM Recommended 2GB RAM Recommended Certifications - - - CE CE CE CE Cable Length - - - 1.8m (8ft) 1.8m (8ft) 2.5m (8ft) 2.5m (8ft) Camera Warranty - - - 1 Year 1 Year - 1 Year Software Support - - - 6 Months 6 Months 6 Months 6 Months Compatibility Imaging Compatibility (with adapters) - - - 23mm 23mm C-Mount C-Mount -
1690 Pelican Composite Microscope Case - Transport Product Details Brand Pelican Compatibility Compatible With OM88, OM88T
| Brand | Omano |
|---|---|
| Recommended For | 0 |
