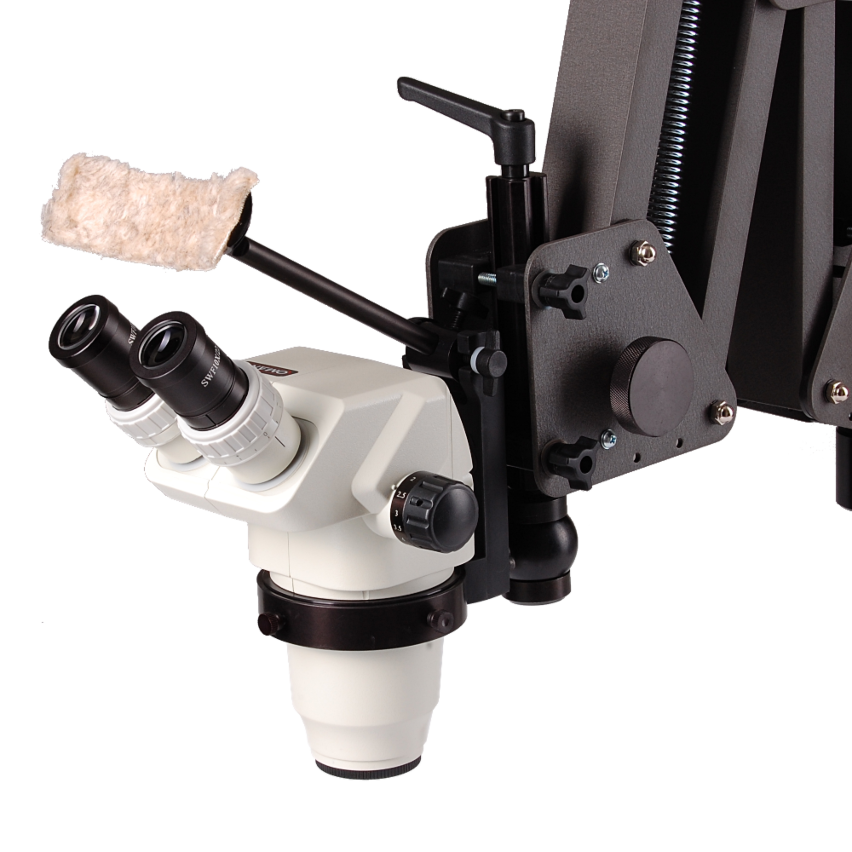

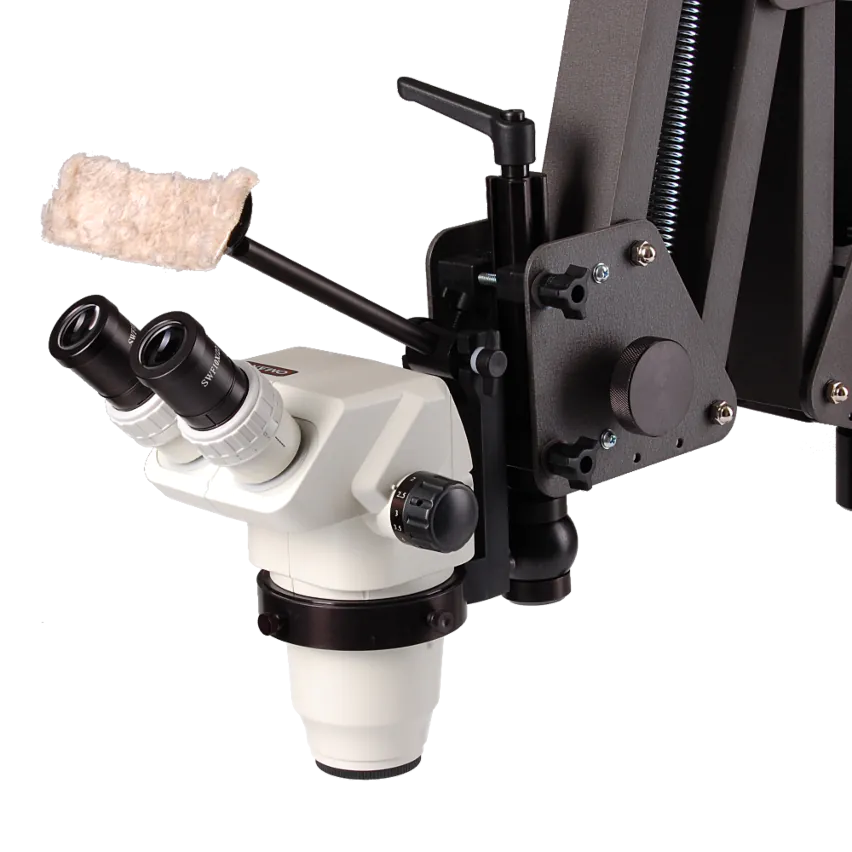

OM99-ACRO 6.5X-45X Articulated Boom Stereoscope with Acrobat stand

The Omano OM99 is the top of the range of Omano zoom stereo microscope that compares favorably with its Olympus cousin. Featuring 6.5x-45x parfocal magnification, it is built round six prisms and, in our opinion, is the best quality stereo microscope out of China. The two Super Wide Field SWF10X eyepieces make for a terrific viewing experience with rubber eyecups included. Dual diopters are integrated into the eye tubes for individual eye adjustment and interpupillary adjustment range is 55mm-75mm. Working distance is 31/4" and more than doubles to over 6" with the addition of a0.5x auxiliary barlow lens. Optional barlow lenses include 0.3x, 0.4x, 0.5x, 0.75x, 1.0x and 2.0x. Available in binocular or trinocular format with a 23mm smooth eyepiece adapter included wit the trinocular version.

The Omano OM99 is the top of the range of Omano zoom stereo microscope that compares favorably with its Olympus cousin. Featuring 6.5x-45x parfocal magnification, it is built round six prisms and, in our opinion, is the best quality stereo microscope out of China. The two Super Wide Field SWF10X eyepieces make for a terrific viewing experience with rubber eyecups included. Dual diopters are integrated into the eye tubes for individual eye adjustment. and interpupillary adjustment range is 55mm-75mm. Working distance is 31/4" and more than doubles to over 6" with the addition of a0.5x auxiliary barlow lens. Optional barlow lenses include 0.3x, 0.4x, 0.5x, 0.75x, 1.0x and 2.0x. Included 23mm smooth eyepiece adapter.

No more hunting around or searching for your required zoom setting. Our new Omano OM99D microscope lets you find it in a heartbeat with precise click-stop detent system. Find your zoom setting fast, make your observation and return to it confident you have the same exact setting. This is ideal for those applications requiring repetitive, detailed and highly accurate observation such as mineral examination, electronics repair, chip inspection and assembly validation.

Detent Features

• Precise reference back to your zoom setting
• Ergonomic knobs for ease of use
• Positive detents ensure accurate zoom selection

Comparing favorably to its Olympus cousin, The OM99D head features 6.5X-45X zoom range built around six prisms with dual diopters integrated into the eye tubes for individual eye adjustment. It includes Super Wide Field SWF10X eyepieces and eye guards for improved viewing.

No more hunting around or searching for your required zoom setting. Our new Omano OM99D-T trinocular microscope lets you find it in a heartbeat with precise click-stop detent system. Find your zoom setting fast, make your observation and return to it confident you have the same exact setting. This is ideal for those applications requiring repetitive, detailed and highly accurate observation such as mineral examination, electronics repair, chip inspection and assembly validation.

Detent Features

• Precise reference back to your zoom setting
• Ergonomic knobs for ease of use
• Positive detents ensure accurate zoom selection

The OM99T is our finest trinocular microscope. A great combination of superb optics, fine craftsmanship and balance, this inspection microscope system will meet and exceed the qualifications you require for your needs.

Comparing favorably to its Olympus SZ-40 cousin, The OM99D head features 6.5X-45X zoom range built around six prisms with dual diopters integrated into the eye tubes for individual eye adjustment. It includes Super Wide Field SWF10X eyepieces and eye guards for improved viewing.

The new Omano 80 LED ring light offers a combination of cool, bright, shadow-free illumination with adjustable intensity control and affordable pricing. Designed to replace our 10W and 12W fluorescent ring lights, this light is an inexorable step away from fluorescent illumination in microscopy applications.

The light has an internal diameter of 60mm with adjustable retaining screws for smaller housings. An adapter is also included. For worry-free operation, the light includes auto-switching power input for use with 90V-265V power supplies.

A new well-designed 64 LED ring light joins the Omano illumination stable. It includes integrated transformers and four independent ON/OFF zones in addition to variable intensity controls for maximum flexibility. A service life greater than 100,000 hours translates into years of trouble-free, energy-saving performance. Ring fits microscopes up to 60mm diameter and includes a 48mm ring adapter.

A new well-designed 144 LED microscope ring light joins the Omano illumination stable. It includes an integrated transformer to accept 90V-265V power and four independent ON/OFF zones in addition to variable intensity controls for maximum flexibility. A service life greater than 100,000 hours translates into years of trouble-free, energy-saving performance. This microscope ring fits scopes up to 60mm in diameter and includes a 48mm ring adapter.

A microscope ring light is an excellent accessory for just about any scope. These lights are designed to be clamped or screwed on to the bottom of your scope’s nosepiece ring, fitting snugly around your objective lens, sometimes with the use of a specific adapter piece designed to work with your specific brand of scope. These ring lights can then be used to illuminate your sample from above, increasing the amount of reflected light and improving your ability to observe and interact with specific types of sample specimens that aren’t able to be illuminated from below.

Controlling a microscope ring light is done through a corded box that contains on/off and intensity settings. This allows you to specify the amount of illumination you desire. Ring lights have been traditionally made with compact fluorescent bulbs, but LED technology has quickly supplanted these older bulbs because they are cheaper to operate, don’t require any warm-up time, pose no hazards from broken bulbs, and can emit almost identical color temperatures while also illuminating either the entire stage or selected portions of it.

The new Omano dual gooseneck 8W LED microscope light provides excellent value with a focused spotlight and the convenience of a small footprint. The light fits easily on to a desk top and with with two 30cm gooseneck light guides, can be angled to suit your specific requirements. Each gooseneck has 7 LEDs with 4W output for very bright, shadow-free illumination. The lamp housing is made of aluminum alloy and incorporates a dimmer switch on the front for different light intensities. The light has an automatic voltage converter through 90-265V, 50-60HZ.

Finally, an innovative microscope lighting solution! The new Omano attachable dual pipe LED light guide attaches to most stereo microscope pole or rigid-arm stands. Easy to attach - and remove - on any pole stand or rigid arm, it provides two powerful 3W LED lights for focused and bright illumination. The total output is 300LM with 4,500k-10,000k operating temperature depending on the intensity.. The light guides feature a total length of 22.5 inches and the control box measures 5" x 2.5" x 2.0".

For worry-free operation, the light includes auto-switching power input for use with 90V-265V power supplies.One year warranty.

Recommended for all stereo microscope boom stands and the Omano V3 pole stand shown (V3 stand not included).
