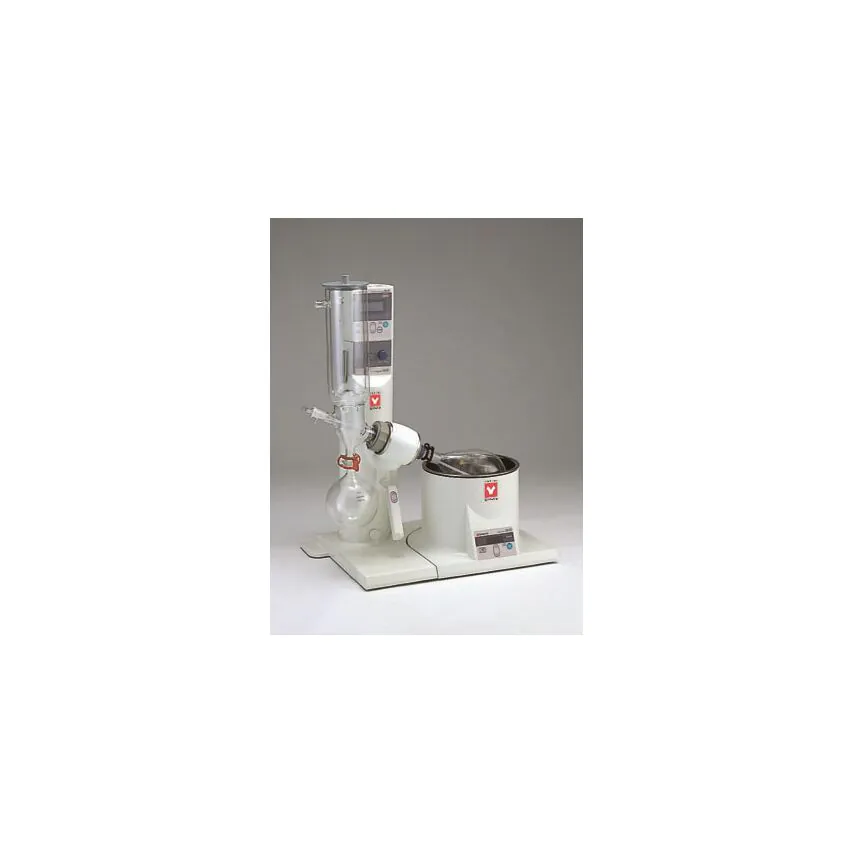

Premium Rotary Evaporator Yamato RE-601 4L Digital Water bath 100-120V
RE601 and RE801 are highly functional and programmable rotary evaporators which are standard equipped with motorized lift, vacuum regulator, vapor temperature display functions and automatic distillation function.
Features:
Adjustable Rotary Joint
Rotary joint’s locking position is adjustable within 80 mm; especially useful when using varying capacity evaporating flasks or when there is a need to shift the vacuum seal’s contact position (Patent No. 3220033)
Glass Condenser (prevents liquid stagnation)
The vertical condenser prevents liquid from stagnating. New condenser tubes (type A&B) are designed to increase cooling capacity with a 20% larger surface area. (Patent No. 4597021)
Quick Release of Evaporating Flask
Evaporation flasks are easily removable with built in flask remover
Motorized Lift
Designed with a motorized lift making it easy to raise or lower the unit by a simple switch operation
Control Panel
Rotation speed knob with digital display indication
Other Features:
One touch electric lift for easy up and down movement
Digital setting and display for motor speed (rpm), vacuum and vapor temperature
Stable rotation at low and high speeds
Unique durable vacuum seal suitable up to 2L flasks
One touch operation for displaying and saving operating conditions
Equipped with lift-up switch in the event of power outage
Rotary joint’s locking position is adjustable up to 80 mm; useful when using evaporating flasks with varying capacities or when there is a need to shift the vacuum seal’s contact position (Patent No. 3220033)
Vertical condenser prevents liquid from stagnating. New condenser tubes (type A&B) are designed to increase cooling capacity with a 20% larger surface area (Patent No. 4597021)
Evaporating flask can be released easily and quickly by turning the flask release nut
Compact, fits into any fume hood
Universal power supply: works with 100-240VAC
Glassware Set
Product Code
Glassware Set
255291
Set A (Use with Cooling Water)
The Standard glass set where condenser is titled diagonally,suitable for standard distillation
255292
Set B (Use with cooling water)
The condenser is set vertical, suitable for distillation of solvent with higher boiling points. When space is limited, the use of vertical condenser is recommended
255293
Set C (Use with dry ice)
The cold finger glass condenser is set vertically, suitable for distillation of volatile or low boiling point solvents. When space is limited, the use of vertical condenser set up is recommended.
