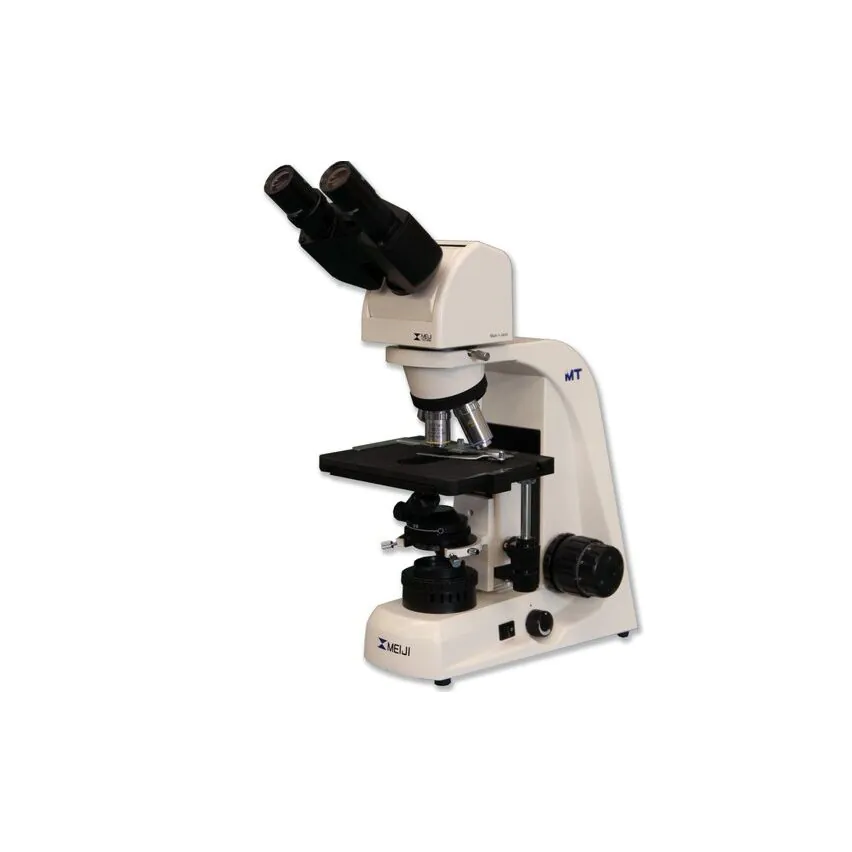

Veterinary Microscope - MT4200-EV Ergonomic Laboratory Microscope
- Infinity Corrected Optics
- 5 Plan Objective Lenses
- Cool white LED or Halogen illumination
- Ergonomic 10-50 degree viewing head
- Trinocular version includes 5MP HDMI camera
- Lifetime Limited Warranty.
- Recommended for Veterinary professionals
Summary
The new Meiji MT4200-V is an advanced, research-grade laboratory trinocular microscope, designed for the rigors of daily routine laboratory work by veterinary professionals. The Infinity Corrected Optical System (ICOS) on this veterinary microscope includes five high quality objective lenses set in a quintuple nosepiece and combines with standard Halogen or LED illumination to offer bright, crisp images. It is manufactured in Japan and comes with a Lifetime Limited Warranty.
Optics
The microscope includes a Siedentopf-type ergonomic binocular head with the oculars inclined at a comfortable 10 to 50 degrees of inclination range for great viewing flexibility. The left eyetube has diopter settings for easy individual eye focusing. The interpupillary distance is adjustable between 53mm - 75mm. 10x Widefield High Eyepoint eyepieces (F.N. 20) are standard and come with a 21mm reticle mount.
A DIN Infinity Corrected Optical System (ICOS) includes five Plan brightfield objective lenses (Plan Achro 4x, 10x, 20x, s40x and s100x Oil) set in a ball-bearing mounted, quintuple nosepiece. The Achromatic objectives significantly reduce chromatic and spherical aberration for clearer, more detailed images.
Trinocular Version Includes 5.0MP Camera
All trinocular HD models are equipped with a 5.0MP HDMI / USB2.0 CMOS camera, an 11.8" HDMI monitor and 0.3X c-mount adapter with software CD for professional documentation.
Stage & Focus
The standard right-handed flat top stage measures 170mm x 140mm with a 80mm(X) x 52mm(Y) range of movement, coaxial right-hand controls with drop-down positioning and a ceramic coating for durability.
Condenser & Illumination
Abbe 1.25 NA Condenser with built-in iris in a dovetail mount. Illumination is bright white LED or 30W Halogen.
Specifications of Component Options
-
MT4200ELV Ergonomic Binocular Veterinary LED Microscope
MT4300ELV-HD Ergonomic Trinocular Veterinary LED Microscope & 5MP Camera
MT4200EHV Ergonomic Binocular Veterinary Microscope
MT4300EHV-HD Ergonomic Trinocular Veterinary Microscope & 5MP Camera Product Details Brand Meiji Techno Meiji Techno Meiji Techno Meiji Techno Warranty Notes Product Weight 17.6 17.6 17.6 17.6 Product Length 390 mm 390 mm 390 mm 390 mm Product Width 210 mm 210 mm 210 mm 210 mm Product Height 410 mm 410 mm 410 mm 410 mm System System Type Brightfield Brightfield Brightfield Brightfield Optical Design Infinity Corrected Infinity Corrected Infinity Corrected Infinity Corrected Head Head Type Binocular Trinocular Binocular Trinocular Ocular Angle Variable Ergonomic Variable Ergonomic Variable Ergonomic Variable Ergonomic Diopter Adjustment Single Single Single Single Interpupillary Adjustment Arc (Seidentopf) Arc (Seidentopf) Arc (Seidentopf) Arc (Seidentopf) Interpupillary Adjustment Range 53 – 75 mm 53 – 75 mm 53 – 75 mm 53 – 75 mm Trinocular Tube Focusable? No No No No Parfocal No No No No View Orientation Inverted View Inverted View Inverted View Inverted View Ocular Tube Diameter 23 mm 23 mm 23 mm 23 mm Body Nosepiece Orientation Reversed Reversed Reversed Reversed Nosepiece Style Quintuple (5) Quintuple (5) Quintuple (5) Quintuple (5) Focus Controls Coarse & Fine Coarse & Fine Coarse & Fine Coarse & Fine Focus Mechanism Rack & Pinion Rack & Pinion Rack & Pinion Rack & Pinion Focus Control Location Dual Ambidextrous Dual Ambidextrous Dual Ambidextrous Dual Ambidextrous Focus Controls Graduated? Yes Yes Yes Yes Stage Type Mechanical XY Mechanical XY Mechanical XY Mechanical XY Stage Features Ceramic Coated Ceramic Coated Ceramic Coated Ceramic Coated Stage Range Graduated? No No No No Configuration Includes Eyepieces? Yes Yes Yes Yes Included Eyepiece Quantity 2 2 2 2 Included Eyepieces (X) 10X 10X 10X 10X Eyepiece Style SWF Super Widefield (FN 20mm) SWF Super Widefield (FN 20mm) SWF Super Widefield (FN 20mm) SWF Super Widefield (FN 20mm) Includes Eyecups? No No No No Min Standard Mag 40X 40X 40X 40X Max Standard Mag 1000X 1000X 1000X 1000X Objectives Included Objectives (Qty) 4 4 4 4 Objective Lens Plan Plan Plan Plan Included Objective Types Brightfield Brightfield Brightfield Brightfield Included Objectives Parfocal Adjustable? No No No No Condenser Condenser Type Abbe Brightfield Abbe Brightfield Abbe Brightfield Abbe Brightfield Condenser Features Iris Diaphragm Iris Diaphragm Iris Diaphragm Iris Diaphragm Condenser N.A. 1.25 mm 1.25 mm 1.25 mm 1.25 mm Filter Diameter 44 mm 44 mm 44 mm 44 mm Illumination Illumination Type LED LED Halogen Halogen Illumination Style Transmitted Transmitted Transmitted Transmitted Collector Type Kohler Kohler Kohler Kohler Collector Features Field Diaphragm Field Diaphragm Field Diaphragm Field Diaphragm Transmitted Light Type LED LED Halogen Halogen Transmitted Light Specification LED LED 30W 30W Transmitted Light Control Variable Variable Variable Variable Power Supply 110V-230V AC Auto Voltage Sensing 110V-230V AC Auto Voltage Sensing 110V-230V AC Auto Voltage Sensing 110V-230V AC Auto Voltage Sensing Reticles Reticles Available? No No No No Accessories Included Extras Dust Cover Dust Cover Dust Cover Dust Cover Case Included? No No No No
